Pololu Servo Controller + Arduino (3/3)

In order to call a subroutine you have to create it manually with the Pololu Software and then Save all the secuences to script so the program haves something to call.

Command used: "Restart Script at Subroutine" with Pololu protocol http://www.pololu.com/docs/0J40/5.f
Pololu protocol: 0xAA, device number, 0x27, subroutine number

Each underlined is a byte that you must send, so in this case you send 4 bytes (4 packages of 1 byte), let's see how it works

Arduino Code, Pololu protocol: "subroutine" is a method that do all the work

void sub(unsigned int subrutine)
{
   Serial.write(0xAA); //start byte, Mandatory [byte 1]
   Serial.write(0x0C); //device id or number (seen in part 1/3) [byte 2]
   Serial.write(0x27); //command number, Mandatory [byte3]

   if(subrutine == 0){
     Serial.write(0x00); //execute subrutine number received [byte 4]
   }
   if(subrutine == 2){
     Serial.write(0x02);  //execute subrutine number received[byte 4]
   }
   if(subrutine == 3){
     Serial.write(0x03); //execute subrutine number received[byte 4]
   }
   if(subrutine == 4){
     Serial.write(0x04); //execute subrutine number received[byte 4]
   }
}

void loop()
{
   subroutine(3);        // Calling subroutine number 3 (first is 0)
   delay(1000);         // Wait 1000 miliseconds (1 sec)
   subroutine(4);        // Calling subroutine number 4
   delay(1000);         // Wait 1000 miliseconds (1 sec)
}

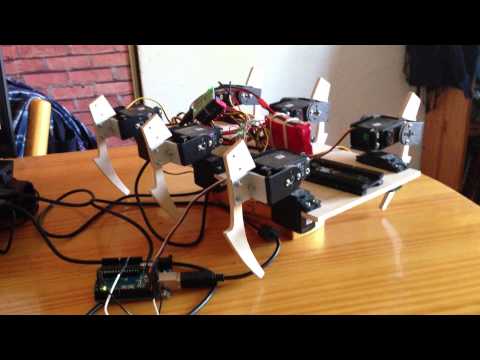

Video Sample:


Imgur Album

Go to part 2/3

,
